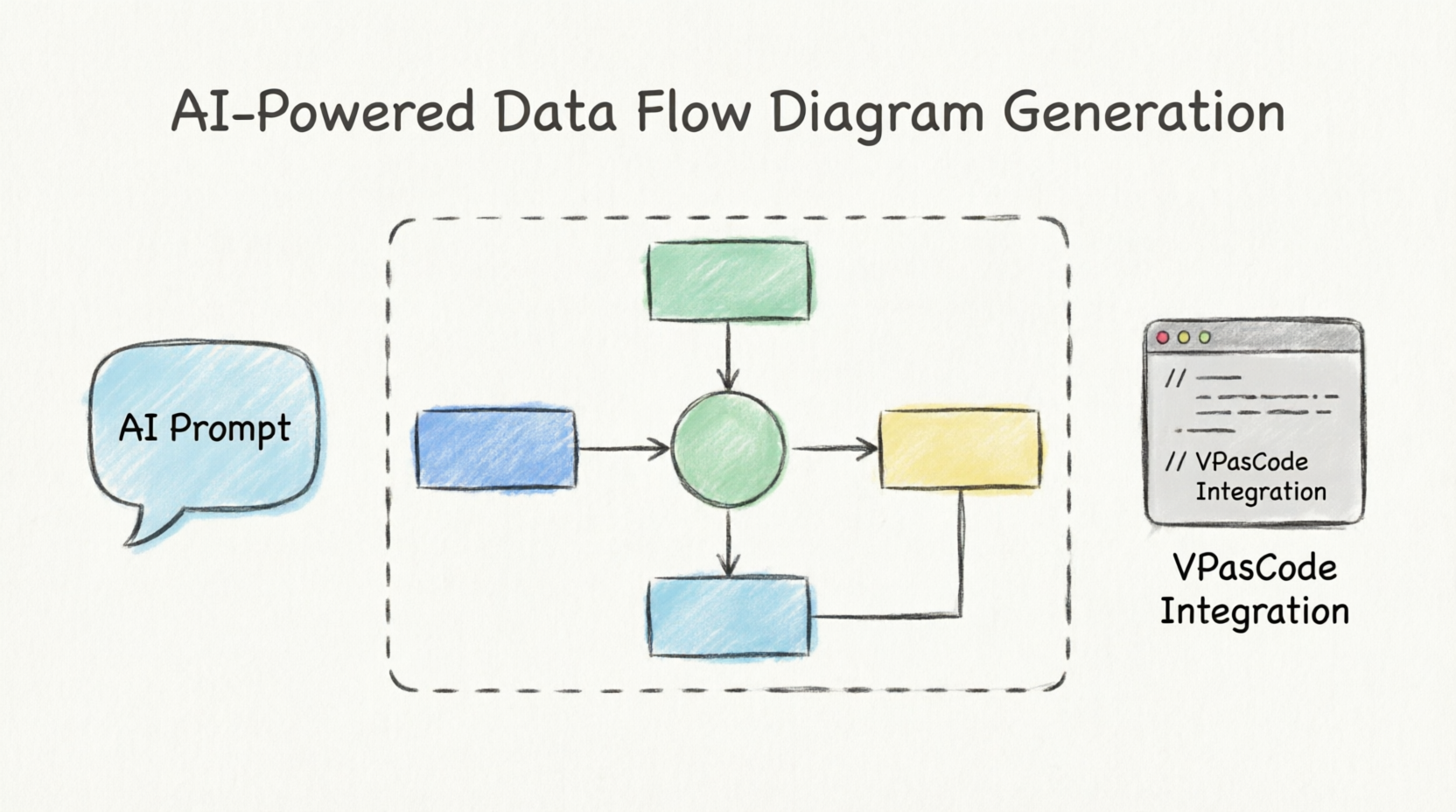

Mastering Data Flow Diagrams: A Hands-On Review of Visual Paradigm’s AI-Powered DFD Generator

Introduction

In today’s fast-paced software development landscape, creating clear and professional Data Flow Diagrams (DFDs) has become both essential and time-consuming. As someone who has spent countless hours wrestling with tangled diagram lines and ambiguous shapes, I was eager to test Visual Paradigm’s latest AI-powered DFD generation capabilities. This comprehensive review explores my experience with their enhanced AI Diagramming Chatbot V2, examining how it transforms the way we visualize system architectures. Whether you’re a seasoned systems analyst or a developer just starting with architectural modeling, this guide will walk you through the features, benefits, and real-world applications of this powerful tool.

Mastering Data Flow Diagrams: A Hands-On Review of Visual Paradigm’s AI-Powered DFD Generator

Discovering Enhanced Data Flow Diagram Generation with Intelligent Layouts

Visual Paradigm has been consistently pushing the boundaries of what’s possible with automated, AI-driven software development tools. Following their massive Next-Gen AI Diagramming Chatbot V2 upgrade, they’ve announced a major breakthrough in how their AI constructs complex system architectures: a completely redesigned, industry-leading Data Flow Diagram (DFD) generation engine.

A Data Flow Diagram generated by Visual Paradigm's AI Diagramming Chatbot, for a Vehicle Rental Management System

Data Flow Diagrams are essential for mapping out how information moves through an application, tracking everything from external inputs to internal data storage. However, as systems grow, automated diagrams can quickly turn into a tangled “spaghetti” of crossing lines and ambiguous shapes. This latest enhancement directly solves this problem, elevating the quality, readability, and professional look of every AI-generated DFD instantly.

What Makes the New AI DFD Generation Better?

While the previous AI engine generated accurate data flows, the new engine introduces sophisticated structural rendering rules that mimic the layout design of an expert systems analyst. This was achieved by completely rewriting the backend rendering pipelines to tap into advanced Graphviz modeling rules. Here are the three pillars of this upgrade:

1. Distinct Geometric Symbols for Precision Modeling

A great DFD should tell a story at a glance. In this update, the AI Chatbot applies sharp, color-coded, and unmistakable shape paradigms to eliminate all visual ambiguity:

  • External Entities (Actors/Systems): Represented as crisp, light-blue rectangular boxes, making it instantly clear who or what is interacting with your application from the outside.

  • Processes (Actions/Functions): Rendered as perfect green circles with clear numerical tracking (e.g., “1.0 Search Flights”), standardizing how operations are mapped.

  • Data Stores (Databases/Files): Modeled as yellow record-style tables complete with internal IDs (e.g., “D1 | Flight Schedule”), perfectly mimicking classic Gane-Sarson or Yourdon & Coad notations.

2. Smart Routing Connectors to Eliminate Overlap

One of the biggest pain points in automated diagramming is crossing lines. If two data flows overlap, the diagram becomes difficult to interpret. The new version utilizes an optimized splines = true and overlap = false matrix routing approach. Connectors now dynamically curve around processes and data stores, establishing clear, frictionless data paths that keep text labels legible and flows distinct.

3. Visual System Boundary Containers (Scope Mapping)

Understanding what lives inside your software system versus what remains external is vital for security and project scoping. The AI Diagramming Chatbot now automatically encapsulates all internal processes and data stores within a styled, dashed System Boundary Container. This logical grouping provides immediate context regarding system scope, a feature highly coveted by enterprise architects and software engineers alike.

See It in Action: The Graphviz Powering Your Diagrams

To demonstrate the depth of this enhancement, here is the clean, structurally structured Graphviz code generated by the AI Chatbot using the prompt: “Generate a Data Flow Diagram for an Airline Ticket Reservation System”.

A Data Flow Diagram generated by Visual Paradigm's AI Diagramming Chatbot, for an Airline Ticket Reservation System

The Graphviz code showcases the sophisticated layout engine:

Graphviz Edit Graphviz in VPasCode
digraph DFD {
    // --- GRAPH STYLE ---
    graph [
        rankdir = LR
        splines = true
        overlap = false
        nodesep = 0.5
        ranksep = 0.8
        fontname = "Helvetica,Arial,sans-serif"
        fontsize = 12
    ]

    // --- NODE STYLES ---
    node [
        fontname = "Helvetica,Arial,sans-serif"
        fontsize = 11
        penwidth = 1.5
    ]

    // External Entities
    node [shape = box, style = "filled", fillcolor = "#E1F5FE", color = "#0288D1"]
    Passenger; AirlineOperator; PaymentGateway; Admin;

    // --- SYSTEM BOUNDARY CONTAINER ---
    subgraph cluster_SystemBoundary {
        label = "Airline Ticket Reservation System";
        fontname = "Helvetica,Arial,sans-serif"
        fontsize = 14
        color = "#757575"
        style = "dashed,rounded"
        bgcolor = "#FAFAFA"
        margin = 20

        // Processes
        node [shape = circle, style = "filled", fillcolor = "#E8F5E9", color = "#388E3C", fixedsize = true, width = 1.3]
        P1 [label="1.0\nSearch\nFlights"];
        P2 [label="2.0\nBook\nTicket"];
        P3 [label="3.0\nProcess\nPayment"];
        P4 [label="4.0\nManage\nBooking"];
        P5 [label="5.0\nGenerate\nReports"];

        // Data Stores
        node [shape = record, style = "filled", fillcolor = "#FFF9C4", color = "#FBC02D", fixedsize = false]
        FlightDS [label="{ <id> D1 | Flight Schedule }"];
        BookingDS [label="{ <id> D2 | Booking Records }"];
        PaymentDS [label="{ <id> D3 | Payment Transactions }"];
        PassengerDS [label="{ <id> D4 | Passenger Info }"];
    }

    // --- EDGE STYLES ---
    edge [
        fontname = "Helvetica,Arial,sans-serif"
        fontsize = 9
        color = "#555555"
        arrowsize = 0.8
    ]

    // --- DATA FLOWS ---
    Passenger -> P1 [label="Search\nCriteria"];
    Passenger -> P2 [label="Booking\nDetails"];
    Passenger -> P4 [label="Cancellation/\nModification\nRequest"];
    AirlineOperator -> P5 [label="Report\nRequest"];
    Admin -> P5 [label="Analytics\nRequest"];

    P1 -> Passenger [label="Available\nFlights"];
    P2 -> Passenger [label="Booking\nConfirmation"];
    P4 -> Passenger [label="Updated\nBooking\nStatus"];
    P3 -> PaymentGateway [label="Payment\nRequest"];
    PaymentGateway -> P3 [label="Payment\nConfirmation"];
    P5 -> AirlineOperator [label="Operational\nReports"];
    P5 -> Admin [label="Analytics\nDashboard"];

    P1 -> FlightDS [label="Query\nFlights"];
    P2 -> BookingDS [label="Create\nBooking"];
    P2 -> PassengerDS [label="Save\nPassenger"];
    P3 -> PaymentDS [label="Record\nPayment"];
    P4 -> BookingDS [label="Update\nBooking"];

    FlightDS -> P1 [label="Flight\nSchedule\nData"];
    BookingDS -> P2 [label="Seat\nAvailability"];
    BookingDS -> P4 [label="Booking\nDetails"];
    PassengerDS -> P2 [label="Passenger\nData"];
    PaymentDS -> P3 [label="Payment\nStatus"];
    BookingDS -> P5 [label="Booking\nHistory"];
    PaymentDS -> P5 [label="Revenue\nData"];

    P1 -> P2 [label="Selected\nFlight"];
    P2 -> P3 [label="Payment\nDetails"];
    P3 -> P2 [label="Payment\nConfirmation"];
}
Edit Graphviz in VPasCode

Seamless Integration with VPasCode: Edit Diagrams Instantly

What good is an AI-generated diagram if you can’t customize it? Thanks to the native integration with VPasCode, their premium Diagram-as-Code platform, you retain complete creative control.

When you generate a Data Flow Diagram inside the AI chatbot, a button reading “Open in VPasCode” will appear directly underneath the diagram viewer.

Clicking this button seamlessly opens your diagram code inside the VPasCode workspace. From there, you can:

  • Modify processes, add external actors, or adjust data streams using straightforward Graphviz syntax.

  • See your modifications update in real-time right alongside your code editor.

  • Instantly export your final custom layout to crisp, high-resolution formats like PNG, JPEG, or scalable vectors for documentation.

Exploring Visual Paradigm’s Comprehensive AI-Powered Visual Modeling Suite

Visual Paradigm provides an AI-powered visual modeling suite built directly into its desktop and web ecosystem. Its tools allow teams to transform text prompts into technical diagrams, optimize databases, and generate project documentation instantly.

The primary AI capabilities are divided into five functional pillars:

1. The AI VPP Chatbot

The AI Chatbot serves as an interactive co-pilot for modeling and editing.

  • Prompt to Diagram: Generates fully structured visuals from plain text prompts without needing drag-and-drop templates.

  • Conversational Editing: Refines models through natural language commands like “add payment gateway” or “rename Customer to Buyer”.

  • Standard Verification: Checks generated diagrams against strict industry guidelines like UML and ArchiMate to maintain structural alignment.

2. Broad Diagram & Framework Generation

The platform features an automated engine capable of instantly drafting dozens of technical and business diagrams.

  • Software Architecture: Generates UML Class, Sequence, Use Case, State Machine, C4 models, and Data Flow Diagrams (DFD).

  • Enterprise Architecture: Drafts SysML block definitions and ArchiMate frameworks based on specified viewpoints.

  • Business Strategy: Builds operational frameworks including SWOT analysis, PESTLE analysis, Ansoff Matrix, and McKinsey 7S models.

3. Smart Database Design (DBModeler AI)

The DB Modeler AI automates backend development from application ideas down to database scripts.

  • Multi-Level Diagrams: Automatically drafts PlantUML domain class structures alongside Entity Relationship Diagrams (ERD).

  • Stepwise Normalization: Evaluates and optimizes the database structure progressively through 1NF, 2NF, and 3NF.

  • SQL Playground: Produces PostgreSQL-compatible scripts and populates mock tables with realistic, AI-generated test data.

4. Code & Requirement Analysis

The platform bridges the gap between text-based business requirements and actual engineering deployment.

  • Textual Analysis: Extracts data relationships out of loose problem statements to isolate core entities and properties.

  • SysML v2 Studio: Syncs code to system architecture diagrams in real time, supporting automatic cross-file symbol resolution.

  • Flow Transformations: Maps written use-case summaries into complete UML Activity Diagrams and sequential step-flows.

5. Automated Intelligence & Knowledge Systems

AI modules analyze your canvas workspace to deliver strategic project insights.

  • Strategic Reports: Reviews business models to calculate risk indexes and automatically format multi-slide investor pitch outlines.

  • OpenDocs Platform: Hosts an all-in-one markdown workspace linking notes, hierarchical folders, and generated charts natively.

  • Process Analysis: Reviews value streams to locate systemic operational backlogs and bottlenecks.

Getting Started: Ready to Generate Your Enhanced DFD?

Experience the precision of the enhanced Data Flow Diagram layout logic right now. Use the link below to load up the chatbot app and generate professional architecture maps within seconds.

Try the Enhanced AI Diagramming Chatbot v2 Tool Now

Conclusion

After thoroughly testing Visual Paradigm’s enhanced AI-powered DFD generation capabilities, I can confidently say this represents a significant leap forward in automated diagramming technology. The intelligent layout engine successfully addresses the long-standing pain points of automated diagram generation—eliminating overlapping lines, providing clear visual distinctions between components, and automatically establishing system boundaries.

What sets this tool apart is not just its ability to generate accurate diagrams from simple text prompts, but also the seamless integration with VPasCode that allows for immediate customization and refinement. The combination of AI-powered generation with manual editing capabilities provides the perfect balance between automation and control.

For teams looking to accelerate their software architecture documentation, improve system visualization, or simply reduce the time spent on manual diagram creation, Visual Paradigm’s AI Diagramming Chatbot V2 delivers exceptional value. The enhanced DFD engine, combined with the broader suite of AI-powered modeling tools, positions Visual Paradigm as a comprehensive solution for modern software development teams seeking to leverage AI for improved productivity and clarity in their architectural documentation.
