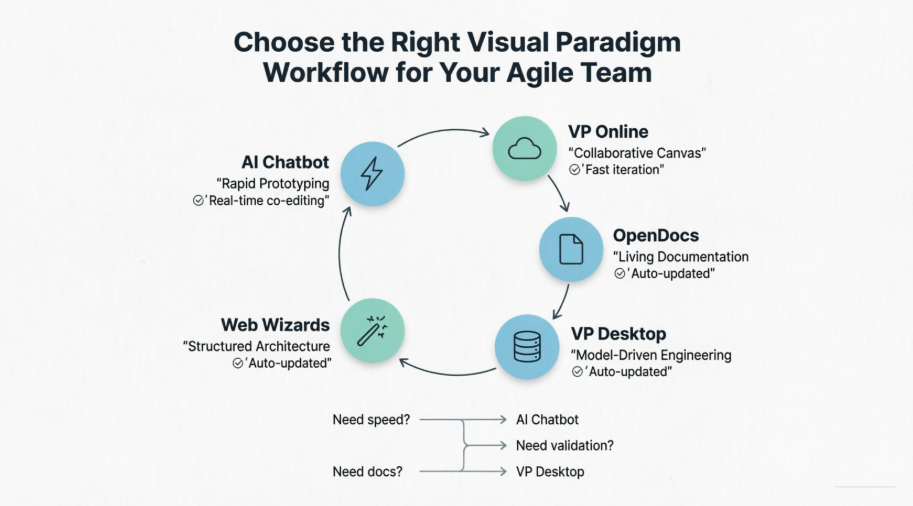

Navigate Visual Paradigm’s five diagramming modalities to accelerate sprint planning, refine architecture, and maintain living documentation—without tooling overhead.
Introduction
Agile software teams thrive on speed, clarity, and adaptability. Yet, as systems grow in complexity, the need for precise, shareable, and maintainable visual models becomes non-negotiable. Visual Paradigm offers not one, but five distinct pathways for creating diagrams—each optimized for different stages of the agile lifecycle, from discovery to delivery.
This guide cuts through the feature lists to answer the question every agile practitioner asks: “Which tool do I use, when, and why?” We’ll examine Visual Paradigm’s AI Chatbot, VP Online canvas, OpenDocs integration, VP Desktop modeling, and Web Wizards—not as isolated products, but as complementary capabilities you can sequence, combine, and scale according to your sprint goals, team structure, and compliance needs. Whether you’re a product manager sketching a user journey, an engineer validating a microservice contract, or an architect documenting enterprise boundaries, this review maps your workflow to the right Visual Paradigm modality.
1. AI Chatbot: Diagramming as Code
Interface: chat.visual-paradigm.com | Platform: Cloud-native (VP Online feature, accessible from Desktop with qualifying license)
Operational Mechanics
-
Natural Language Input: Users type structural declarations or real-world descriptions (e.g., “Create a UML use case diagram for an online shopping system”). The AI parses intent, maps to modeling standards, and compiles visual output.
-
Supported Standards: UML (all 14 diagram types), SysML, C4 Model (Context/Container/Component/Code), ArchiMate (20+ viewpoints), and business frameworks (SWOT, PESTLE, Ansoff, BCG Matrix).
-
Conversational Refinement: Commands like “Rename Customer to Buyer” or “Add async payment callback” trigger iterative regeneration without manual repositioning.
Key Limitations
| Constraint | Impact |
|---|---|
| No persistent model repository | Generated diagrams exist as isolated outputs; changes don’t propagate to other diagrams unless explicitly imported |
| License-gated import | Importing AI-generated diagrams into VP Desktop requires Professional Edition (Enterprise for ArchiMate) |
| Context window limits | Extremely complex multi-system prompts may require staged refinement rather than single-shot generation |
Best Used For
✅ Rapid structural prototyping and stakeholder alignment sessions
✅ Initial brainstorming before committing to formal modeling
✅ Generating first-draft documentation visuals for non-technical audiences
✅ Exploring architectural alternatives via conversational iteration
💡 Pro Tip: Use the AI Chatbot to generate a C4 System Context diagram, then import it into VP Desktop (Professional+) to establish model-level consistency for downstream Container/Component refinement.
2. VP Online: Isolated Canvas Editing
Interface: online.visual-paradigm.com | Platform: Browser-based, zero-install
Operational Mechanics
-
Vector Canvas Editor: Intuitive drag-and-drop interface with shape libraries for flowcharts, UML, ERD, BPMN, and infographics.
-
Real-Time Collaboration: Multi-user editing with commenting, task assignment, and version history—ideal for distributed teams.
-
Export Flexibility: PNG, SVG, PDF, and direct embedding into Confluence, Notion, or Microsoft 365.
Key Limitations
| Constraint | Impact |
|---|---|
| No centralized model dictionary | Elements are geometric shapes, not reusable model instances; renaming “Order” on Diagram A doesn’t update Diagram B |
| Limited engineering features | No code generation, reverse engineering, or database DDL synchronization |
| Validation-light | Syntactic modeling rules (e.g., UML cardinality constraints) are not enforced |
Best Used For
✅ Standalone presentation visuals and executive summaries
✅ Ad-hoc process mapping for business workshops
✅ Educational diagrams and student assignments
✅ Quick wireframes before formal specification
⚠️ Critical Distinction: VP Online excels at visual communication but is not designed for model-driven engineering. Use it for outputs, not as your system-of-record architecture repository.
3. OpenDocs: In-Document Embedded Modeling
Interface: ai.visual-paradigm.com/tool/opendocs/ | Platform: Cloud knowledge base with integrated Markdown + diagramming
Operational Mechanics
-
Inline Diagram Generation: Trigger “Create with AI” directly from the OpenDocs toolbar to embed diagrams at cursor position.
-
Markdown-First Workflow: Write technical documentation with embedded interactive diagrams, code blocks, and live previews.
-
Pipeline Integration: Export diagrams from VP Desktop or VP Online into OpenDocs via the Pipeline feature for synchronized documentation.
Key Limitations
| Constraint | Impact |
|---|---|
| Document-local scope | Diagrams are tied to their host page; no cross-document model synchronization |
| No validation engine | Embedded diagrams lack syntactic checking or consistency rules across the knowledge base |
| Limited export formats | Optimized for web viewing; PDF/Word export is secondary to digital sharing |
Best Used For
✅ Technical wikis, SOPs, and product requirement documents
✅ Living architecture decision records (ADRs) with embedded visuals
✅ Onboarding guides combining narrative explanation with system diagrams
✅ Agile team spaces linking user stories to visual specifications
💡 Workflow Enhancement: Generate a C4 Component diagram via AI Chatbot → embed in OpenDocs for stakeholder review → export validated version to VP Desktop for engineering implementation.
4. VP Desktop: Advanced Modeling, Validation, and Consistency
Interface: Installed application (Windows/macOS/Linux) | Platform: Unified model repository with enterprise-grade tooling
Operational Mechanics
-
True Model-Centric Architecture: Elements exist as master definitions in a centralized project database. Updating an
Employeeclass propagates changes across all UML, sequence, and deployment diagrams instantly. -
Standards Compliance Engine: Enforces UML 2.5, SysML 1.6, BPMN 2.0, and ArchiMate 3.2 syntax rules; flags invalid relationships, missing multiplicities, or broken dependencies.
-
Full Engineering Lifecycle:
-
Round-trip code engineering (Java, C#, Python, SQL, etc.)
-
Database schema generation (DDL) and ORM mapping (Hibernate)
-
REST API design with OpenAPI/Swagger export
-
Enterprise framework support: TOGAF ADM, DoDAF, NAF, Zachman
-
Key Limitations
| Constraint | Impact |
|---|---|
| Installation required | Not browser-accessible; requires local setup and license management |
| Steeper learning curve | Advanced features demand familiarity with modeling standards and repository concepts |
| Collaboration requires cloud sync | Real-time co-editing needs VP Online integration (enabled via Cloud sync settings) |
Best Used For
✅ Mission-critical system architectures requiring auditability and traceability
✅ Long-term enterprise projects with multi-team model ownership
✅ Regulatory-compliant documentation (e.g., medical, finance, aerospace)
✅ Code-first development workflows needing model-code synchronization
🔁 Sync Strategy: Enable Cloud integration in Desktop (Tools > Options > Cloud) to sync projects with VP Online for hybrid desktop/web collaboration.
5. Web Wizards: Structural and Contextual Relationship Refinement
Interface: Guided step-by-step interfaces within VP Online/Desktop | Platform: Context-aware architectural scaffolding
Operational Mechanics
-
Tiered Scoping Framework: Wizards prompt users through explicit boundary definition, dependency mapping, and layer refinement—reducing cognitive load for complex architectures.
-
C4 Model Native Support: Dedicated wizards for all six C4 diagram types:
-
System Context: Define system boundaries and external actors
-
Container: Map high-level technical components (web apps, databases, microservices)
-
Component: Decompose containers into internal modular units
-
Code: Generate class diagrams from component specifications
-
Dynamic: Illustrate runtime interactions and sequences
-
Deployment: Model infrastructure topology and node relationships
-
AI-Assisted Refinement: Wizards integrate with the AI Chatbot to suggest relationship refinements or missing dependencies based on architectural patterns.
Key Limitations
| Constraint | Impact |
|---|---|
| Template-driven flexibility | Highly structured workflows may feel restrictive for unconventional architectures |
| C4 focus | Optimized for software architecture; less applicable to pure business process modeling |
| Requires foundational understanding | Users benefit from basic C4 literacy to maximize wizard effectiveness |
Best Used For
✅ Decomposing monolithic systems into layered, maintainable architectures
✅ Onboarding new team members to complex system landscapes
✅ Creating executive-ready architecture portfolios with consistent visual language
✅ Aligning technical implementation with business capability maps
🎯 C4 Best Practice: Start with the System Context wizard to establish stakeholder alignment, then progressively drill down—using AI Chatbot for rapid iteration at each layer before formalizing in Desktop.
Workflow Comparison Matrix
| Workflow Mode | Generation Interface | Model Sync / Reusability | Validation & Compliance | Primary Use Case | Licensing Notes |
|---|---|---|---|---|---|
| 1. AI Chatbot | Conversational text prompts | ❌ Isolated outputs (importable with Pro+) | ⚠️ Basic pattern matching | Rapid prototyping, stakeholder alignment | VP Online feature; Desktop access requires qualifying license |
| 2. VP Online | Drag-and-drop canvas | ❌ Shape-level only (no model instances) | ❌ None | Presentation visuals, ad-hoc diagrams | Free tier available; team features require subscription |
| 3. OpenDocs | Embedded AI + Markdown editor | ⚠️ Document-local only | ❌ None | Technical documentation, wikis, ADRs | Included with VP Online; Pipeline sync requires Desktop integration |
| 4. VP Desktop | Repository canvas + import pipelines | ✅ Full workspace-wide synchronization | ✅ Strict syntactic & rule engine | Enterprise engineering, regulatory projects | Perpetual/subscription; Professional+ for AI import |
| 5. Web Wizards | Guided step-by-step structural flow | ⚠️ Context-mapped parent/child scaling | ⚠️ Structured boundary constraints | Hierarchical architectures (C4, TOGAF) | Available in VP Online; advanced wizards require Desktop |
Licensing & Access Quick Reference
| Feature | Free Tier | VP Online Subscription | VP Desktop Professional | VP Desktop Enterprise |
|---|---|---|---|---|
| AI Chatbot access | ✅ Limited prompts | ✅ Full access | ✅ Via cloud sync | ✅ Via cloud sync |
| Diagram import to Desktop | ❌ | ❌ | ✅ UML/C4/etc. | ✅ + ArchiMate |
| Model validation engine | ❌ | ❌ | ✅ Full UML/SysML/BPMN | ✅ + ArchiMate/DoDAF |
| C4 Model wizards | ✅ Basic | ✅ Full suite | ✅ Full suite + export | ✅ Full suite + enterprise templates |
| Real-time collaboration | ❌ | ✅ Multi-user editing | ✅ Via VP Online sync | ✅ + advanced permissions |
| Code engineering | ❌ | ❌ | ✅ 10+ languages | ✅ + advanced ORM/API |
ℹ️ Note: Desktop license holders with active maintenance receive complimentary access to VP Online features, enabling seamless desktop/web workflow integration.
Practical Guidance for Agile Teams: When to Use What
Agile teams operate in cycles of discovery, delivery, and documentation. Visual Paradigm’s five workflows map cleanly to these phases—when used intentionally.
Sprint 0 / Discovery Phase
-
Start with AI Chatbot: Quickly generate context diagrams, user journey maps, or high-level component sketches from stakeholder descriptions. Use conversational refinement to align on scope before coding begins.
-
Supplement with VP Online: For collaborative whiteboarding sessions, use the browser-based canvas to co-edit flowcharts or wireframes with product owners and designers in real time.
Sprint Planning & Refinement
-
Leverage Web Wizards: When decomposing epics into technical stories, use C4 wizards to systematically break down system boundaries → containers → components. This creates a shared visual vocabulary for estimation and task breakdown.
-
Embed in OpenDocs: Capture the output directly in your team’s living documentation. Link diagrams to user stories, acceptance criteria, and API contracts—all in one Markdown page.
Development & Implementation
-
Shift to VP Desktop: Once architecture stabilizes, import validated diagrams into Desktop for model-driven engineering. Generate code skeletons, validate UML constraints, and maintain traceability from requirement to implementation.
-
Enable Cloud Sync: Keep remote developers in the loop by syncing the Desktop model to VP Online, allowing lightweight review and commenting without requiring full Desktop licenses for every contributor.
Review & Retrospective
-
Use OpenDocs for ADRs: Document architecture decisions with embedded, interactive diagrams that stay current as the system evolves. Stakeholders can view diagrams in-browser without tool installation.
-
Archive with VP Desktop: For compliance or audit purposes, export the canonical model from Desktop with full metadata, version history, and validation reports.
Combination Strategies for Agile Workflows
The real power of Visual Paradigm emerges when you chain workflows together. Here are three proven patterns for agile teams:
Pattern 1: AI → OpenDocs → Desktop (The “Validate & Scale” Loop)
-
Prompt AI Chatbot: “Generate a C4 Container diagram for our payment service”
-
Review and refine conversationally in the chat interface
-
Use Pipeline to embed the diagram into an OpenDocs architecture decision record
-
Export the validated diagram to VP Desktop for code generation and model governance
-
Sync back to VP Online for stakeholder review
Best for: Teams balancing speed with long-term maintainability; ideal for microservice decomposition.
Pattern 2: Web Wizards → VP Online → OpenDocs (The “Collaborative Blueprint”)
-
Use the System Context wizard to define boundaries with product and ops teams
-
Share the draft in VP Online for asynchronous feedback and annotation
-
Embed the finalized diagram in OpenDocs alongside runbooks and onboarding guides
-
Link to Jira epics or Azure DevOps work items via Markdown references
Best for: Distributed teams establishing shared understanding before implementation begins.
Pattern 3: VP Desktop → AI Chatbot → VP Online (The “Rapid Iteration” Cycle)
-
Maintain the canonical model in VP Desktop with full validation
-
Export a subset (e.g., a single component) to AI Chatbot for rapid “what-if” experimentation
-
Test alternative designs conversationally, then re-import the best option into Desktop
-
Publish the updated diagram to VP Online for sprint review demos
Best for: Teams practicing evolutionary architecture who need to explore options without destabilizing the core model.
Conclusion
Visual Paradigm’s multi-modal approach isn’t about choosing one tool—it’s about orchestrating the right tool at the right time. For agile software teams, this means embracing fluidity: start conversations with AI, collaborate in the browser, document in Markdown, validate in Desktop, and scale with wizards. The goal isn’t diagram perfection; it’s shared understanding, reduced rework, and living documentation that evolves with your product.
By mapping Visual Paradigm’s five workflows to your agile ceremonies—discovery, planning, development, and review—you turn modeling from a bottleneck into a catalyst. Whether you’re a startup iterating weekly or an enterprise navigating compliance, the key is intentionality: use lightweight tools for exploration, robust tools for implementation, and embedded docs for continuity. With this mindset, Visual Paradigm becomes not just a diagramming suite, but a coordination layer for your entire delivery lifecycle.
